测试示例：

 vs2015+release+x64

    #include <pcl/point_cloud.h>
    #include <pcl/point_types.h>
    #include <pcl/io/pcd_io.h>

    #include <pcl/visualization/pcl_visualizer.h>
    #include <pcl/surface/on_nurbs/fitting_surface_tdm.h>
    #include <pcl/surface/on_nurbs/fitting_curve_2d_asdm.h>
    #include <pcl/surface/on_nurbs/triangulation.h>
    #include <pcl/console/parse.h>

    using namespace pcl::console;
    typedef pcl::PointXYZ Point;

    void
    PointCloud2Vector3d (pcl::PointCloud<Point>::Ptr cloud, pcl::on_nurbs::vector_vec3d &data);

    void
    visualizeCurve (ON_NurbsCurve &curve,
                    ON_NurbsSurface &surface,
                    pcl::visualization::PCLVisualizer &viewer);

    int
    main (int argc, char *argv[])
    {
      std::string pcd_file, file_3dm;

      if (argc < 2)
      {
        printf ("\nUsage: pcl_example_nurbs_fitting_surface pcd<PointXYZ>-in-file -o 3 -rn 4 -in 10 -mr 128 -td 1\n\n");
        exit (0);
      }
      pcd_file = argv[1];
      //file_3dm = argv[2];

      pcl::visualization::PCLVisualizer viewer ("B样条曲面拟合点云数据");
      viewer.setBackgroundColor(0,0,0);
      viewer.setSize (800, 600);

      // ############################################################################
      // load point cloud

      printf ("  loading %s\n", pcd_file.c_str ());
      pcl::PointCloud<Point>::Ptr cloud (new pcl::PointCloud<Point>);
      pcl::PCLPointCloud2 cloud2;
      pcl::on_nurbs::NurbsDataSurface data;

      if (pcl::io::loadPCDFile (pcd_file, cloud2) == -1)
        throw std::runtime_error ("  PCD file not found.");

      fromPCLPointCloud2 (cloud2, *cloud);
      PointCloud2Vector3d (cloud, data.interior);
      pcl::visualization::PointCloudColorHandlerCustom<Point> handler (cloud, 0, 255, 0);
      viewer.addPointCloud<Point> (cloud, handler, "cloud_cylinder");
      printf ("  %lu points in data set\n", cloud->size ());

      // ############################################################################
      // fit B-spline surface

      // parameters
      unsigned order (3);
      unsigned refinement (4);
      unsigned iterations (10);
      unsigned mesh_resolution (128);
      bool two_dim=true;
      parse_argument (argc, argv, "-o", order);
      parse_argument (argc, argv, "-rn", refinement);
      parse_argument (argc, argv, "-in", iterations);
      parse_argument (argc, argv, "-mr", mesh_resolution);
      parse_argument (argc, argv, "-td", two_dim);
      pcl::on_nurbs::FittingSurface::Parameter params;
      params.interior_smoothness = 0.2;
      params.interior_weight = 1.0;
      params.boundary_smoothness = 0.2;
      params.boundary_weight = 0.0;

      // initialize
      printf ("  surface fitting ...\n");
      ON_NurbsSurface nurbs = pcl::on_nurbs::FittingSurface::initNurbsPCABoundingBox (order, &data);
      pcl::on_nurbs::FittingSurface fit (&data, nurbs);
      //  fit.setQuiet (false); // enable/disable debug output

      // mesh for visualization
      pcl::PolygonMesh mesh;
      pcl::PointCloud<pcl::PointXYZ>::Ptr mesh_cloud (new pcl::PointCloud<pcl::PointXYZ>);
      std::vector<pcl::Vertices> mesh_vertices;
      std::string mesh_id = "mesh_nurbs";
      pcl::on_nurbs::Triangulation::convertSurface2PolygonMesh (fit.m_nurbs, mesh, mesh_resolution);
      viewer.addPolygonMesh (mesh, mesh_id);
      std::cout<<"Before refine"<<endl;
      cout << "click q key to quit the visualizer and continue！！" << endl;
      viewer.spin();
      // surface refinement
      for (unsigned i = 0; i < refinement; i++)
      {
        fit.refine (0);
        if(two_dim)fit.refine (1);
        fit.assemble (params);
        fit.solve ();
        pcl::on_nurbs::Triangulation::convertSurface2Vertices (fit.m_nurbs, mesh_cloud, mesh_vertices, mesh_resolution);
     //   viewer.updatePolygonMesh<pcl::PointXYZ> (mesh_cloud, mesh_vertices, mesh_id);
        std::cout << "refine: " << i << endl;
        //std::cout << "click q key to quit the visualizer and continue！！" << endl;
        //viewer.spin();
      }
      viewer.updatePolygonMesh<pcl::PointXYZ>(mesh_cloud, mesh_vertices, mesh_id);
      std::cout << "refines: " << refinement << endl;
      std::cout << "click q key to quit the visualizer and continue！！" << endl;
      viewer.spin();

      // surface fitting with final refinement level
      for (unsigned i = 0; i < iterations; i++)
      {
        fit.assemble (params);
        fit.solve ();
        pcl::on_nurbs::Triangulation::convertSurface2Vertices (fit.m_nurbs, mesh_cloud, mesh_vertices, mesh_resolution);
     //   viewer.updatePolygonMesh<pcl::PointXYZ> (mesh_cloud, mesh_vertices, mesh_id);
        std::cout << "iteration: " << i << endl;
        //std::cout << "click q key to quit the visualizer and continue！！" << endl;
        //viewer.spin();
      }

      viewer.updatePolygonMesh<pcl::PointXYZ>(mesh_cloud, mesh_vertices, mesh_id);
      std::cout << "surface fitting with iterations: " << iterations << endl;
      std::cout << "click q key to quit the visualizer and continue！！" << endl;
      viewer.spin();

      // ############################################################################
      // fit B-spline curve

      // parameters
      pcl::on_nurbs::FittingCurve2dAPDM::FitParameter curve_params;
      curve_params.addCPsAccuracy = 5e-2;
      curve_params.addCPsIteration = 3;
      curve_params.maxCPs = 200;
      curve_params.accuracy = 1e-3;
      curve_params.iterations = 100;

      curve_params.param.closest_point_resolution = 0;
      curve_params.param.closest_point_weight = 1.0;
      curve_params.param.closest_point_sigma2 = 0.1;
      curve_params.param.interior_sigma2 = 0.00001;
      curve_params.param.smooth_concavity = 1.0;
      curve_params.param.smoothness = 1.0;

      // initialisation (circular)
      printf ("  curve fitting ...\n");
      pcl::on_nurbs::NurbsDataCurve2d curve_data;
      curve_data.interior = data.interior_param;
      curve_data.interior_weight_function.push_back (true);
      ON_NurbsCurve curve_nurbs = pcl::on_nurbs::FittingCurve2dAPDM::initNurbsCurve2D (order, curve_data.interior);

      // curve fitting
      pcl::on_nurbs::FittingCurve2dASDM curve_fit (&curve_data, curve_nurbs);
      //curve_fit.setQuiet (false); // enable/disable debug output
      curve_fit.fitting (curve_params);
      visualizeCurve (curve_fit.m_nurbs, fit.m_nurbs, viewer);

      // ############################################################################
      // triangulation of trimmed surface

      printf ("  triangulate trimmed surface ...\n");
      viewer.removePolygonMesh (mesh_id);
      pcl::on_nurbs::Triangulation::convertTrimmedSurface2PolygonMesh (fit.m_nurbs, curve_fit.m_nurbs, mesh,
                                                                       mesh_resolution);
      viewer.addPolygonMesh (mesh, mesh_id);

      // save trimmed B-spline surface
      /*if ( fit.m_nurbs.IsValid() )
      {
        ONX_Model model;
        ONX_Model_Object& surf = model.m_object_table.AppendNew();
        surf.m_object = new ON_NurbsSurface(fit.m_nurbs);
        surf.m_bDeleteObject = true;
        surf.m_attributes.m_layer_index = 1;
        surf.m_attributes.m_name = "surface";
        ONX_Model_Object& curv = model.m_object_table.AppendNew();
        curv.m_object = new ON_NurbsCurve(curve_fit.m_nurbs);
        curv.m_bDeleteObject = true;
        curv.m_attributes.m_layer_index = 2;
        curv.m_attributes.m_name = "trimming curve";
        model.Write(file_3dm.c_str());
        printf("  model saved: %s\n", file_3dm.c_str());
      }*/

      printf ("  ... done.\n");

      viewer.spin ();
      return 0;
    }

    void
    PointCloud2Vector3d (pcl::PointCloud<Point>::Ptr cloud, pcl::on_nurbs::vector_vec3d &data)
    {
      for (unsigned i = 0; i < cloud->size (); i++)
      {
        Point &p = cloud->at (i);
        if (!pcl_isnan (p.x) && !pcl_isnan (p.y) && !pcl_isnan (p.z))
          data.push_back (Eigen::Vector3d (p.x, p.y, p.z));
      }
    }

    void
    visualizeCurve (ON_NurbsCurve &curve, ON_NurbsSurface &surface, pcl::visualization::PCLVisualizer &viewer)
    {
      pcl::PointCloud<pcl::PointXYZRGB>::Ptr curve_cloud (new pcl::PointCloud<pcl::PointXYZRGB>);

      pcl::on_nurbs::Triangulation::convertCurve2PointCloud (curve, surface, curve_cloud, 4);
      for (std::size_t i = 0; i < curve_cloud->size () - 1; i++)
      {
        pcl::PointXYZRGB &p1 = curve_cloud->at (i);
        pcl::PointXYZRGB &p2 = curve_cloud->at (i + 1);
        std::ostringstream os;
        os << "line" << i;
        viewer.removeShape (os.str ());
        viewer.addLine<pcl::PointXYZRGB> (p1, p2, 1.0, 0.0, 0.0, os.str ());
      }

      pcl::PointCloud<pcl::PointXYZRGB>::Ptr curve_cps (new pcl::PointCloud<pcl::PointXYZRGB>);
      for (int i = 0; i < curve.CVCount (); i++)
      {
        ON_3dPoint p1;
        curve.GetCV (i, p1);

        double pnt[3];
        surface.Evaluate (p1.x, p1.y, 0, 3, pnt);
        pcl::PointXYZRGB p2;
        p2.x = float (pnt[0]);
        p2.y = float (pnt[1]);
        p2.z = float (pnt[2]);

        p2.r = 255;
        p2.g = 0;
        p2.b = 0;

        curve_cps->push_back (p2);
      }
      viewer.removePointCloud ("cloud_cps");
      viewer.addPointCloud (curve_cps, "cloud_cps");
    }

执行命令：

    \Release> .\bspline_fitting.exe ..\..\source\bunny.pcd -rn 4 -in 10

打印信息：

      loading ..\..\source\bunny.pcd
      397 points in data set
      surface fitting ...
    Before refine
    click q key to quit the visualizer and continue！！
    refine: 0
    refine: 1
    refine: 2
    refine: 3
    refines: 4
    click q key to quit the visualizer and continue！！
    iteration: 0
    iteration: 1
    iteration: 2
    iteration: 3
    iteration: 4
    iteration: 5
    iteration: 6
    iteration: 7
    iteration: 8
    iteration: 9
    surface fitting with iterations: 10
    click q key to quit the visualizer and continue！！
      curve fitting ...
      triangulate trimmed surface ...
      ... done.

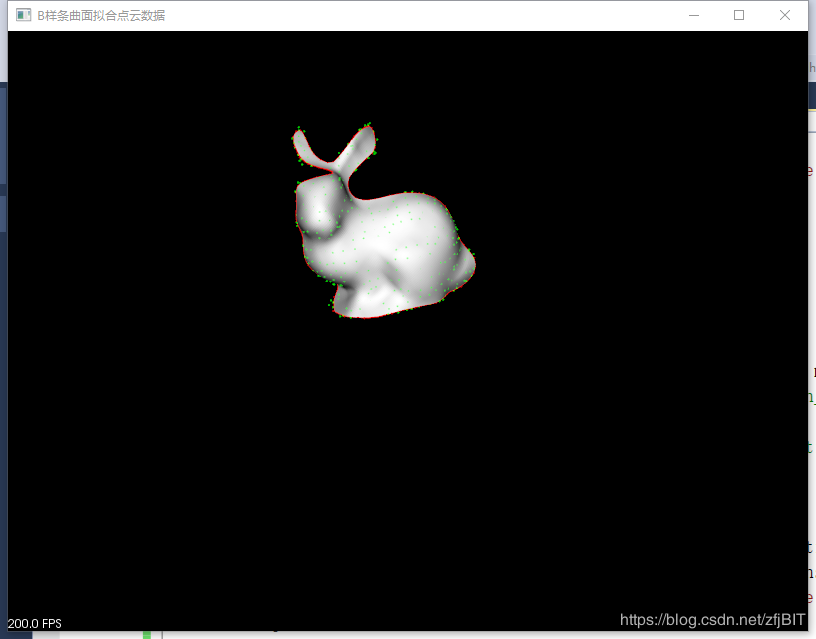

可视化最终曲面：
