一、标准流管道
当我们在调用popen()会创建一个管道,其实popen()会调用fork()函数产生一个子进程,执行shell以运行命令开启一个,并把执行结果写进管道中,然后返回一个文件指针。程序通过文件指针可读取管道中的内容。使用popen()创建的标准流管道需要pclose()进行关闭。

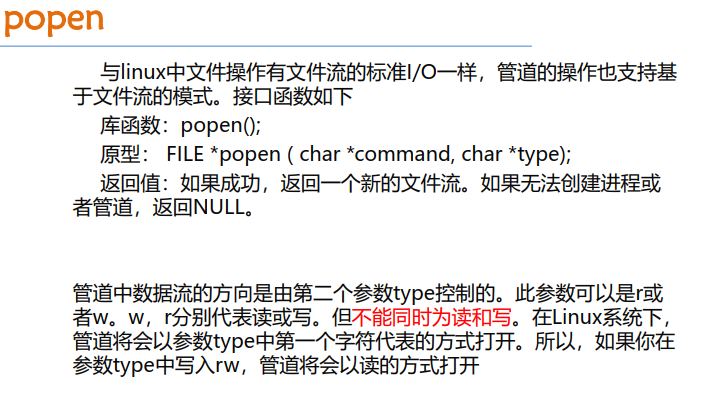

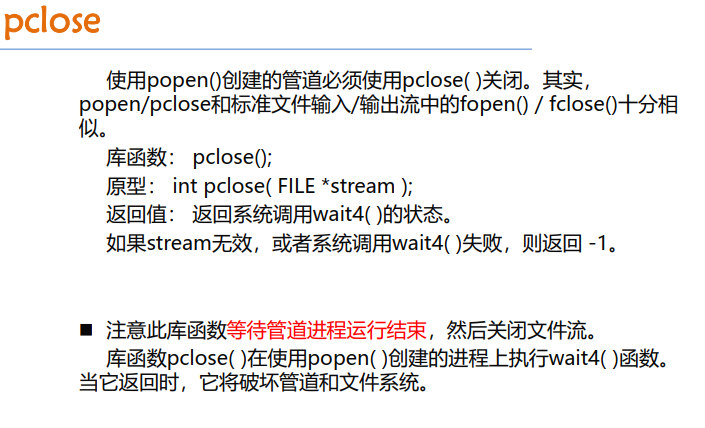

管道的创建与关闭:
例子:
#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>
#define BUFSIZE 1024
int main()
{
FILE *fp;
char *cmd = "printenv";
char buf[BUFSIZE];
buf[BUFSIZE-1] = '\0';
if((fp=popen(cmd,"r"))==NULL)
perror("popen");
while((fgets(buf,BUFSIZE,fp))!=NULL)
printf("%s",buf);
pclose(fp);
exit(0);
}
上述管道虽然实现了进程间通信,但是它具有一定的局限性:首先,这个管道只能是具有血缘关系的进程之间通信;第二,它只能实现一个进程写另一个进程读,而如果需要两者同时进行时,就得重新打开一个管道。

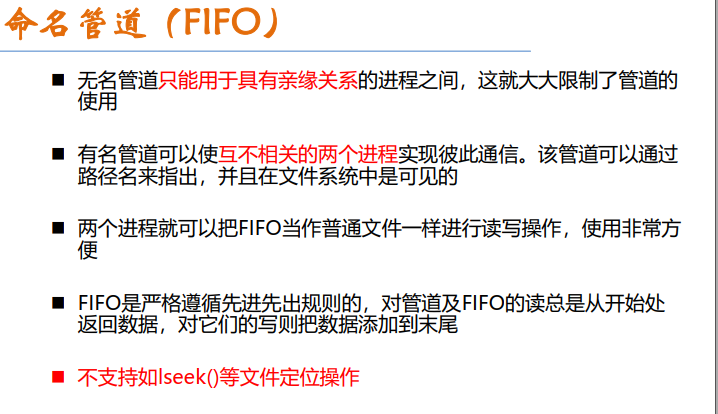

为了使任意两个进程之间能够通信,就提出了命名管道(named pipe 或 FIFO)。

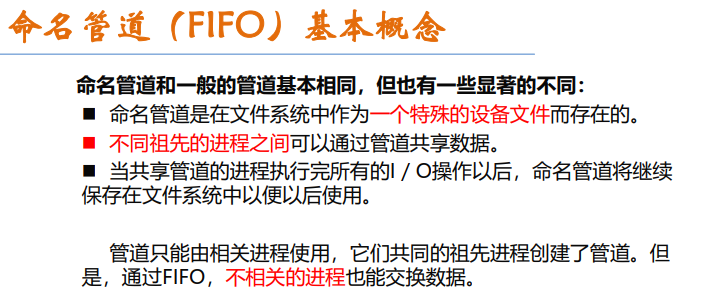

二、命名管道
命名管道创建完成后就可以使用,其使用方法与管道一样,区别在于:命名管道使用之前需要使用open()打开。这是因为:命名管道是设备文件,它是存储在硬盘上的,而管道是存在内存中的特殊文件。但是需要注意的是,命名管道调用open()打开有可能会阻塞,但是如果以读写方式(O_RDWR)打开则一定不会阻塞;以只读(O_RDONLY)方式打开时,调用open()的函数会被阻塞直到有数据可读;如果以只写方式(O_WRONLY)打开时同样也会被阻塞,知道有以读方式打开该管道。

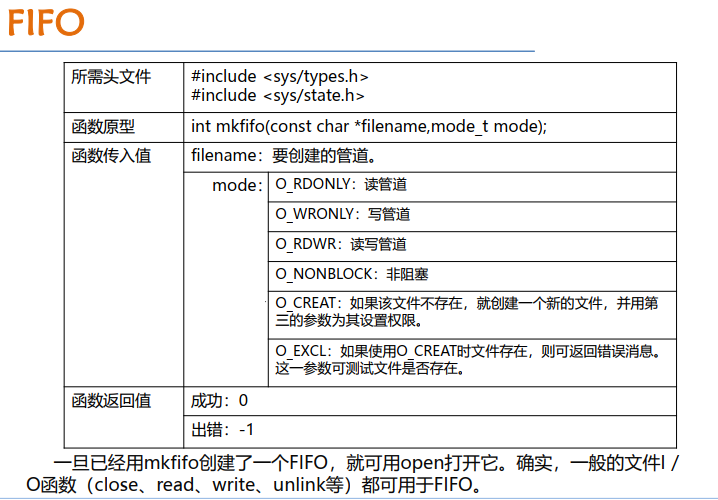

FIFO:

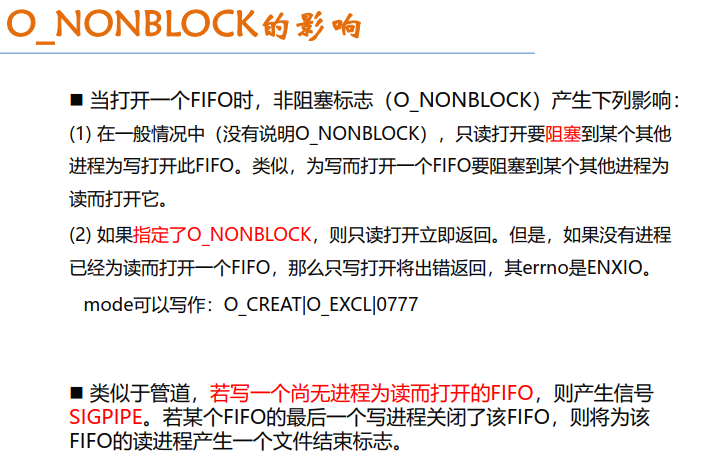

O_NONBLOCK:

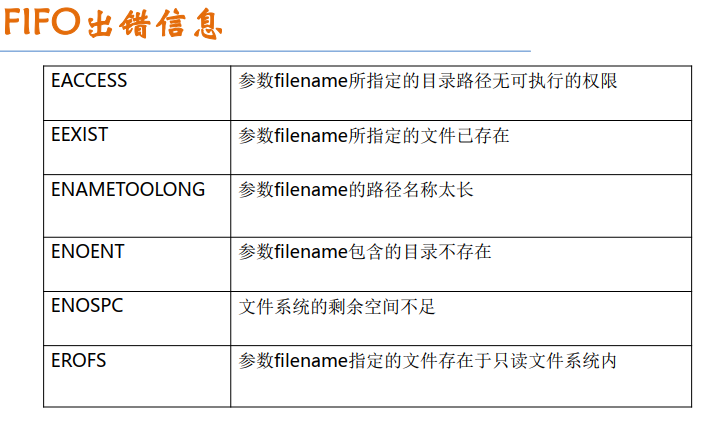

FIFO出错信息:
模拟FIFO读写:
写:
/*write*/
#include <stdio.h>
#include <unistd.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <fcntl.h>
#include <stdlib.h>
#include <string.h>
void sys_err(char *str)
{
perror(str);
exit(-1);
}
int main(int argc, char *argv[])
{
int fd, i;
char buf[4096];
if (argc < 2) {
printf("Enter like this: ./a.out fifoname\n");
return -1;
}
fd = open(argv[1], O_WRONLY);
if (fd < 0)
sys_err("open");
i = 0;
while (1) {
sprintf(buf, "hello itcast %d\n", i++);
write(fd, buf, strlen(buf));
sleep(1);
}
close(fd);
return 0;
}
读:
/*read*/
#include <stdio.h>
#include <unistd.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <fcntl.h>
#include <stdlib.h>
#include <string.h>
void sys_err(char *str)
{
perror(str);
exit(1);
}
int main(int argc, char *argv[])
{
int fd, len;
char buf[4096];
if (argc < 2) {
printf("./a.out fifoname\n");
return -1;
}
fd = open(argv[1], O_RDONLY);
if (fd < 0)
sys_err("open");
while (1) {
len = read(fd, buf, sizeof(buf));
write(STDOUT_FILENO, buf, len);
sleep(3); //多個读端时应增加睡眠秒数,放大效果.
}
close(fd);
return 0;
}
FIFO使用例子:
FIFO的通信方式类似于在进程中使用文件来传输数据,只不过FIFO类型文件同时具有管道的特性。在数据读出时,FIFO管道中同时清除数据,并且“先进先出”。下面的例子演示了使用 FIFO 进行 IPC 的过程:
write:
#include<stdio.h>
#include<stdlib.h> // exit
#include<fcntl.h> // O_WRONLY
#include<sys/stat.h>
#include<time.h> // time
int main()
{
int fd;
int n, i;
char buf[1024];
time_t tp;
printf("I am %d process.\n", getpid()); // 说明进程ID
if((fd = open("fifo1", O_WRONLY)) < 0) // 以写打开一个FIFO
{
perror("Open FIFO Failed");
exit(1);
}
for(i=0; i<10; ++i)
{
time(&tp); // 取系统当前时间
n=sprintf(buf,"Process %d's time is %s",getpid(),ctime(&tp));
printf("Send message: %s", buf); // 打印
if(write(fd, buf, n+1) < 0) // 写入到FIFO中
{
perror("Write FIFO Failed");
close(fd);
exit(1);
}
sleep(1); // 休眠1秒
}
close(fd); // 关闭FIFO文件
return 0;
}
read
#include<stdio.h>
#include<stdlib.h>
#include<errno.h>
#include<fcntl.h>
#include<sys/stat.h>
int main()
{
int fd;
int len;
char buf[1024];
if(mkfifo("fifo1", 0666) < 0 && errno!=EEXIST) // 创建FIFO管道
perror("Create FIFO Failed");
if((fd = open("fifo1", O_RDONLY)) < 0) // 以读打开FIFO
{
perror("Open FIFO Failed");
exit(1);
}
while((len = read(fd, buf, 1024)) > 0) // 读取FIFO管道
printf("Read message: %s", buf);
close(fd); // 关闭FIFO文件
return 0;
}
上述例子可以扩展成 客户进程—服务器进程 通信的实例,write_fifo
的作用类似于客户端,可以打开多个客户端向一个服务器发送请求信息,read_fifo
类似于服务器,它适时监控着FIFO的读端,当有数据时,读出并进行处理,但是有一个关键的问题是,每一个客户端必须预先知道服务器提供的FIFO接口,下图显示了这种安排:
