|栈模拟pre、in,求post|1086 Tree Traversals Again (25分)

在这里插入图片描述

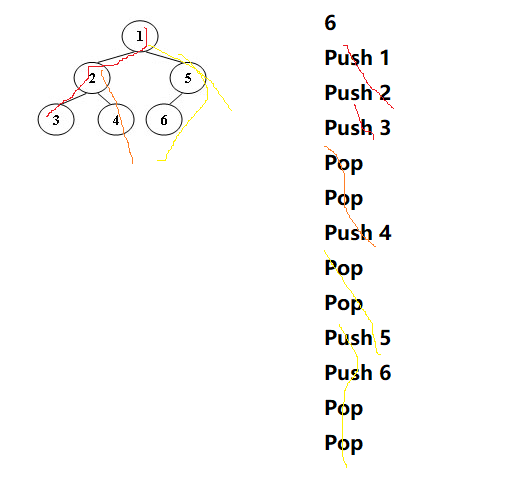

`//用栈来模拟一棵二叉树的先序和中序遍历过程,求这棵二叉树的后序遍历序列
// 6
// Push 1
// Push 2
// Push 3
// Pop
// Pop
// Push 4
// Pop
// Pop
// Push 5
// Push 6
// Pop
// Pop
//push的次序为1、2、3、4、5、6
    //因此先序遍历的序列为123456
//pop的次序为3、2、4、1、6、5
    //因此中序遍历的序列是342651

//任何2个序列组合,都一定要有中序
//每次访问一个新节点时就把它入栈,这个过程和先序序列总是先访问根节点的性质是相同的
    //入栈顺序(push)就是先序遍历序列中元素的顺序
//pop则总是按照做左 根 右的顺序进行的
    //直到找不到某个节点(最下面的那个的)左孩子了,就去找的右孩子,但在这之前,要把左孩子去掉,根节点去掉
    //再去压入右孩子压入,重复上述步骤

//于是,问题就转换为了:给出一棵二叉树的先序遍历序列和中序遍历序列,重构出该二叉树,
//并输出其后续序列,写法非常固定
#include <iostream>
#include <cstdio>
#include <stack>
#include <cstring>
using namespace std;
struct node{


    int data;
    node* lchild;
    node* rchild;
};
int n,pre[110],post[110],in[110];
node* createTree(int preL,int preR,int inL,int inR){


    if(preL>preR)return NULL;
    node* root=new node;
    root->data=pre[preL];
    int k;
    for(k=inL;k<inR;k++){


        if(pre[preL]==in[k]){

    //k=3
            break;
        }
    }
    int leftNum=k-inL;//leftNum=3
    //1 2 3 4 5 6
    //3 2 4 1 6 5

    //1---2 3 4 5 6
    //3 2 4----1----6 5

    //1 ----2 3 4---- 5 6
    root->lchild=createTree(preL+1,preL+leftNum,inL,k-1);//1,3
    root->rchild=createTree(preL+leftNum+1,preR,k+1,inR);//4,5
    return root;
}

int num=0;//已经输出的节点个数
void postorder(node* root){

    //后序遍历
    if(root == NULL){


        return;
    }
    postorder(root->lchild);
    postorder(root->rchild);
    printf("%d",root->data);
    num++;
    if(num<n)printf(" ");
}


int main()
{


    scanf("%d",&n);
    char str[5];
    stack<int>st;
    int x,preIndex=0,inIndex=0;//入栈元素、先序序列位置及中序序列位置
    for(int i=0;i<2*n;i++){

    //一共入栈2n次//Push 1
        scanf("%s",str);//Push
        if(strcmp(str,"Push")==0){

    //入栈----==0相同
            scanf("%d",&x);//1
            pre[preIndex++]=x;//令pre[preIndex]=x
            st.push(x);//用栈的入栈和出栈来模拟树的遍历
        }else{

    // Pop
            in[inIndex++]=st.top();//令in[inIndex]=st.top()
            st.pop();//用栈的入栈和出栈来模拟树的遍历
        }
    }
    node* root=createTree(0,n-1,0,n-1);
    postorder(root);
    return 0;
}`
