简介

说明

本文介绍Spring（SpringBoot）解决循环依赖的流程。

文章系列

三级缓存流程

从一级缓存singletonObjects中获取。（）
若一级缓存中获取不到，则从二级缓存earlySingletonObjects中获取
若二级缓存中获取不到，则从三级缓存singletonFactories中获取
1. 通过beanName获得对应的ObjectFactory，若能够获取到，则：
  1. 调用ObjectFactory#getObject获得真正的bean
  2. 把此bean从三级缓存移到二级缓存。即：singletonFactories中移除，并放入earlySingletonObjects中。

DefaultSingletonBeanRegistry 里边的三级缓存对应的map，如下所示：

/** Cache of singleton objects: bean name to bean instance. */
// 缓存单例Bean。key：bean名字，value：bean实例
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

/** Cache of early singleton objects: bean name to bean instance. */
// 缓存半成品单例Bean。key：bean名字，value：bean实例（已实例化，但未注入属性和初始化）
private final Map<String, Object> earlySingletonObjects = new HashMap<>(16);

/** Cache of singleton factories: bean name to ObjectFactory. */
// 缓存单例bean的工厂。key：bean名字，value：能够生成bean的工厂
private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);

代码位置

从上边可以追踪到从缓存中获取bean的位置：DefaultSingletonBeanRegistry#getSingleton(String beanName, boolean allowEarlyReference)

protected Object getSingleton(String beanName, boolean allowEarlyReference) {
Object singletonObject = this.singletonObjects.get(beanName); // 一级缓存
if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
synchronized (this.singletonObjects) {
singletonObject = this.earlySingletonObjects.get(beanName); // 二级缓存
if (singletonObject == null && allowEarlyReference) {
ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName); // 三级缓存
if (singletonFactory != null) {
singletonObject = singletonFactory.getObject();
this.earlySingletonObjects.put(beanName, singletonObject);
this.singletonFactories.remove(beanName);
}
}
}
}
return singletonObject;
}

bean何时被加入第3级缓存？

简介

在上边“4.三级缓存”中可以看到，第三级缓存（singletonFactories）里边放入了以bean名为键，ObjectFactory为值的项。那么，是何时放入的呢？

答：在AbstractAutowireCapableBeanFactory#doCreateBean中，populateBean之前放入的，方法为：addSingletonFactory

doCreateBean //AbstractAutowireCapableBeanFactory

// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isTraceEnabled()) {
logger.trace("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}

// Initialize the bean instance.
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper);
exposedObject = initializeBean(beanName, exposedObject, mbd);
}

addSingletonFactory //DefaultSingletonBeanRegistry

// 放入以bean名为键，ObjectFactory为值的项

protected void addSingletonFactory(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(singletonFactory, "Singleton factory must not be null");
synchronized (this.singletonObjects) {
if (!this.singletonObjects.containsKey(beanName)) {
this.singletonFactories.put(beanName, singletonFactory);
this.earlySingletonObjects.remove(beanName);
this.registeredSingletons.add(beanName);
}
}
}

getEarlyBeanReference //AbstractAutowireCapableBeanFactory

// 返回 A 的引用。（虽然 A 还在创建，未完成。）

protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
}
}
}
return exposedObject;
}

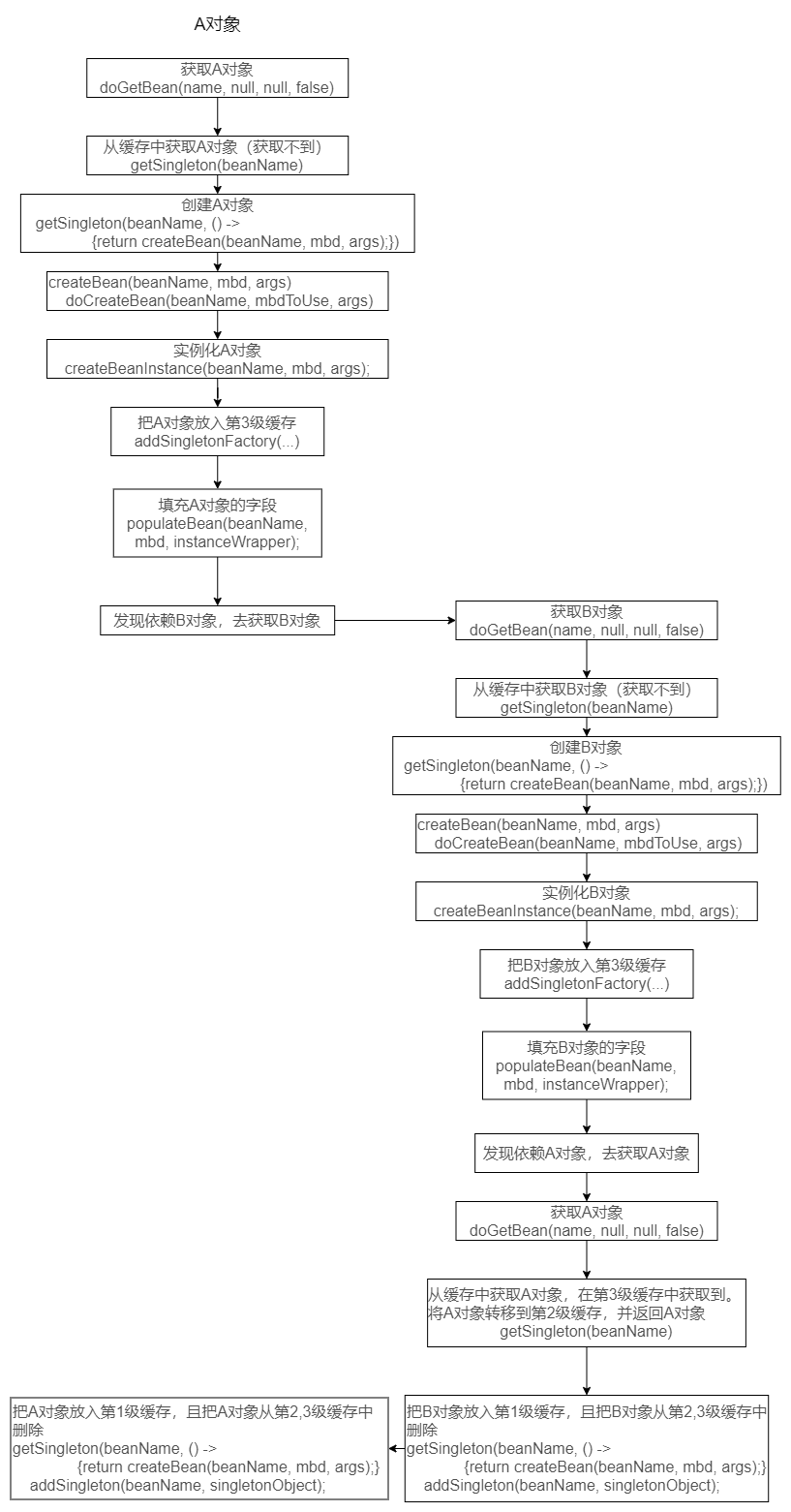

三级缓存流程图

流程图

总结

对于不同的bean，获取某个循环依赖的对象的位置是不同的。
对于第一次获取：缓存中没有，会去创建它，然后获取。
对于第二次获取：第3级缓存中有，会从第3级缓存中获取，然后将其转移到第2级缓存

getSingleton(String beanName, ObjectFactory<?> singletonFactory)

代码流程：

入口

getSingleton(String beanName, ObjectFactory<?> singletonFactory) //DefaultSingletonBeanRegistry
// DefaultSingletonBeanRegistry
singletonObject = singletonFactory.getObject();
addSingleton(beanName, singletonObject);

addSingleton(String beanName, Object singletonObject) // DefaultSingletonBeanRegistry

protected void addSingleton(String beanName, Object singletonObject) {
synchronized (this.singletonObjects) {
this.singletonObjects.put(beanName, singletonObject);
this.singletonFactories.remove(beanName);
this.earlySingletonObjects.remove(beanName);
this.registeredSingletons.add(beanName);
}
}
