最近接到一项需求,点击地图上的要素从点击的要素向文字提示连线,最初要求是直角的折线,直接在文字提示和地图中心画一个div,给div的两条边加边框,div内部透明就实现了,最后领导要求是折线,直角的不好看,最后就想到了用动态生成SVG实现。

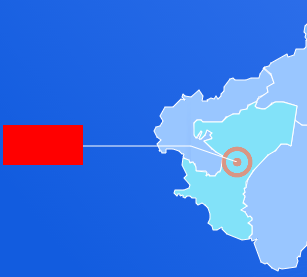

效果图下图
实现过程代码如下
//输入点击要素的绝对屏幕坐标
createLine(coord_pixel.x + mapDiv.offset().left, coord_pixel.y + mapDiv.offset().top);
/**
* 生成折线
* @param x 行政中心屏幕x坐标
* @param y 行政中心屏幕y坐标
*/
function createLine(x, y) {
//计算文字提示右侧中心坐标
var target = $("#target");
var x_target = target.offset().left + target.width();
var y_target = target.offset().top + target.height() / 2;
//line为直角线的实现方式
if (y > y_target) {//起点在文字提示下方
createSvg(x-x_target,y-y_target,y_target,x_target,false);
} else {//起点在文字提示上方
createSvg(x-x_target,y_target-y,y,x_target,true);
}
}
/**
* 生成svg
*/
function createSvg(width, height, top,left,isLineBottom) {
var svg = $("<svg class='polylineSvg' xmlns='http://www.w3.org/2000/svg' version='1.1' width='" +
width + "px' height='" + height + "px' viewBox='0,0,"+width+","+height+"'></svg>");
var x,html;//折点svg坐标,折线
x=width*0.7;
if (isLineBottom) {//线在底部
var y=height-1;
html = "<polyline points='0,"+y+" "+x+","+y+" "+width+",0'" +
" style='fill:white;stroke:white;stroke-width:1;fill-opacity:0'/>";
svg.html(html);
} else {//线在顶部
html = "<polyline points='0,1 "+x+",1 "+width+","+height+"'" +
" style='fill:white;stroke:white;stroke-width:1;fill-opacity:0'/>";
svg.html(html);
}
$("body").append(svg);
svg.css({
"top":top,
"left":left
})
}
