封装IOS原生组件的步骤
1、首先创建自定义的IOS原生组件类(如果是IOS已有组件则无需创建),然后再创建一个RCTViewManager的子类(RN组件桥接类)。
2、添加RCT_EXPORT_MODULE()宏标记。
3、实现-(UIView *)view方法,返回IOS原生组件的实例对象。
1、创建自定义的IOS原生组件类,再创建RN组件桥接类
(1)自定义的IOS原生组件类,继承UIView。
TestReactNativeView.h
//
// TestReactNativeView.h
// NativeCommunicationDemo
//
// Created by chenlw on 2019/4/10.
// Copyright © 2019 Facebook. All rights reserved.
//
#import <UIKit/UIKit.h>
NS_ASSUME_NONNULL_BEGIN
@interface TestReactNativeView : UIView
@end
NS_ASSUME_NONNULL_END
TestReactNativeView.m
//
// TestReactNativeView.m
// NativeCommunicationDemo
//
// Created by chenlw on 2019/4/10.
// Copyright © 2019 Facebook. All rights reserved.
//
#import "TestReactNativeView.h"
//ReactNative封装IOS原生组件,这里编写一个测试用的组件类
@implementation TestReactNativeView
/*
// Only override drawRect: if you perform custom drawing.
// An empty implementation adversely affects performance during animation.
- (void)drawRect:(CGRect)rect {
// Drawing code
}
*/
- (instancetype)init
{
//初始化组件
self = [super init];
if (self) {
self.backgroundColor = [UIColor redColor];
}
//创建一个文本组件
UITextView *textView = [[UITextView alloc] initWithFrame:CGRectMake(20,20,200,40)];
//设置文字
textView.text = @"IOS原生组件";
//设置字体大小
[textView setFont:[UIFont systemFontOfSize:20]];
//添加文件组件
[self addSubview:textView];
return self;
}
@end
(2)创建RCTViewManager的子类(RN组件桥接类)
TestReactNativeViewManager.h
//
// TestReactNativeViewManager.h
// NativeCommunicationDemo
//
// Created by chenlw on 2019/4/10.
// Copyright © 2019 Facebook. All rights reserved.
//
//#import <React/RCTBridgeModule.h>
#import "React/RCTViewManager.h"
NS_ASSUME_NONNULL_BEGIN
@interface TestReactNativeViewManager : RCTViewManager<RCTBridgeModule>
@end
NS_ASSUME_NONNULL_END
TestReactNativeViewManager.m
//
// TestReactNativeViewManager.m
// NativeCommunicationDemo
//
// Created by chenlw on 2019/4/10.
// Copyright © 2019 Facebook. All rights reserved.
//
#import "TestReactNativeViewManager.h"
#import "TestReactNativeView.h"
@implementation TestReactNativeViewManager
//导出桥接宏标记
RCT_EXPORT_MODULE()
- (UIView *)view
{
//创建组件实例
TestReactNativeView * viewInstance =[[TestReactNativeView alloc] init];
return viewInstance;
}
@end
2、添加RCT_EXPORT_MODULE()宏标记
在TestReactNativeViewManager桥接类当中,导出了RCT_EXPORT_MODULE()宏标记。
3、实现-(UIView *)view方法,返回IOS原生组件的实例对象
在TestReactNativeViewManager桥接类当中的- (UIView *)view方法里面,返回IOS原生组件的实例对象。
4、React-Native端使用IOS原生组件
对IOS原生组件再次封装
'use strict';
import React, {Component} from 'react';
import PropTypes from 'prop-types';
import {
requireNativeComponent,
View,
} from 'react-native';
const TestReactNativeView = requireNativeComponent('TestReactNativeView', TestReactNativeViewComponent
, {nativeOnly: {}});
//对封装的组件进行二次封装
class TestReactNativeViewComponent extends Component {
constructor(props) {
super(props);
}
render() {
return (
<TestReactNativeView{...this.props}/>
);
}
}
TestReactNativeViewComponent.propTypes = {
...View.propTypes,
};
//导出二次封装的组件
module.exports = TestReactNativeViewComponent;
RN测试页面代码
import React, {Component} from 'react';
import {Dimensions, StyleSheet, View} from 'react-native';
import TestReactNativeView from './TestReactNativeView';
const screenWidth = Dimensions.get('window').width;
/**
* IOS原生组件封装,注意RN端设置组件的宽度和高度,这样组件才能显示。
*/
export default class TestReactNativeViewExample extends Component {
static navigationOptions = {
headerTitle: 'IOS原生组件封装example',
};
constructor(props, context) {
super(props, context);
}
render() {
return (
<View style={styles.container}>
<TestReactNativeView
style={{
flex: 1,
width: screenWidth,
}}
/>
</View>
)
}
}
const styles = StyleSheet.create({
container: {
flex: 1,
justifyContent: 'center',
alignItems: 'center',
}
});

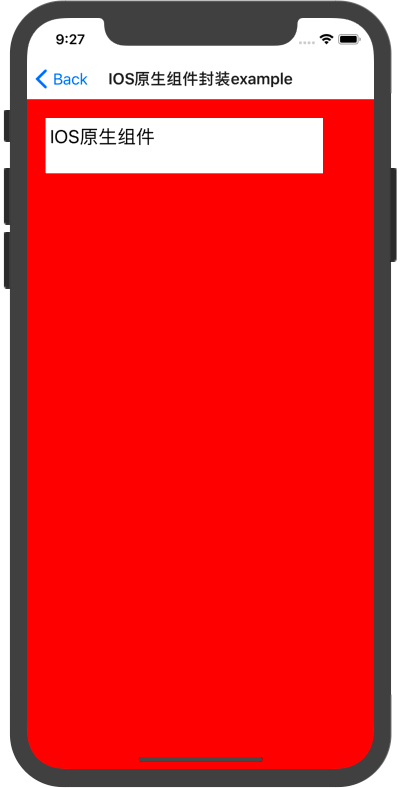

5、运行效果图
以上,就是简单地封装IOS原生组件给RN使用的过程,组件的属性和事件后续还会继续说明。
