1 页面发布
1.1 需求分析

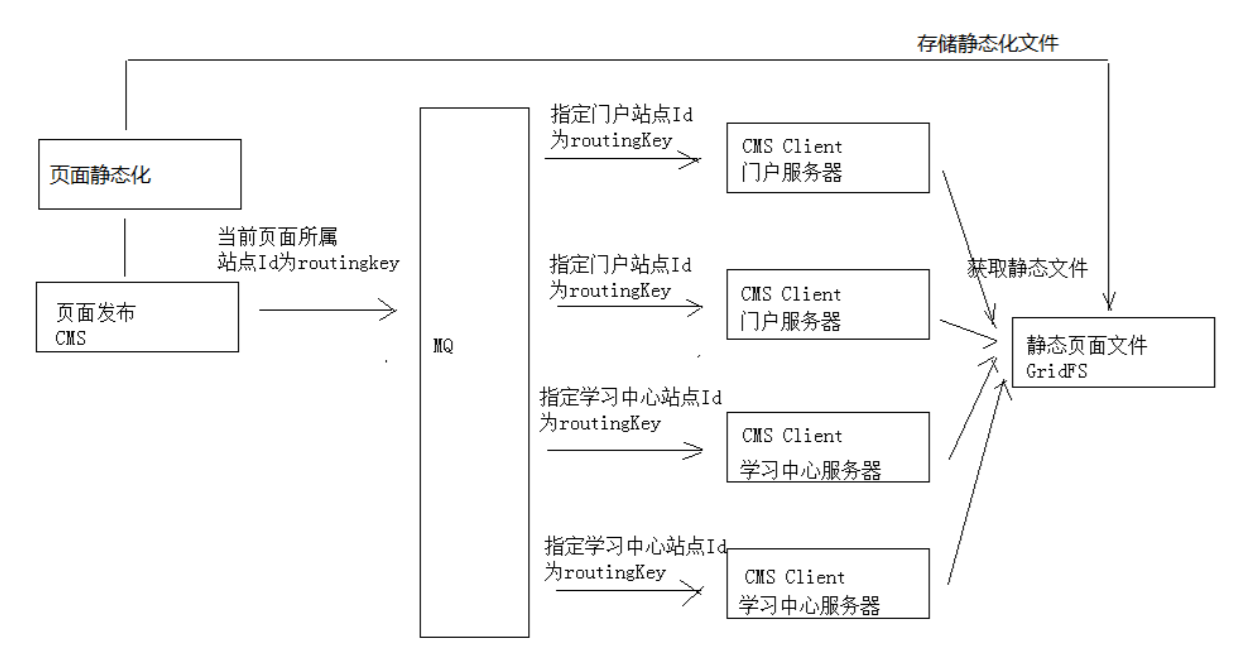

本项目使用MQ实现页面发布的技术方案如下:
技术方案说明:
1、平台包括多个站点,页面归属不同的站点。
2、发布一个页面应将该页面发布到所属站点的服务器上。
3、每个站点服务部署cms client程序,并与交换机绑定,绑定时指定站点Id为routingKey。
指定站点id为routingKey就可以实现cms client只能接收到所属站点的页面发布消息。
4、页面发布程序向MQ发布消息时指定页面所属站点Id为routingKey,将该页面发布到它所在服务器上的cms client。
路由模式分析如下:
发布一个页面,需发布到该页面所属的每个站点服务器,其它站点服务器不发布。
比如:发布一个门户的页面,需要发布到每个门户服务器上,而用户中心服务器则不需要发布。
所以本项目采用routing模式,用站点id作为routingKey,这样就可以匹配页面只发布到所属的站点服务器上。

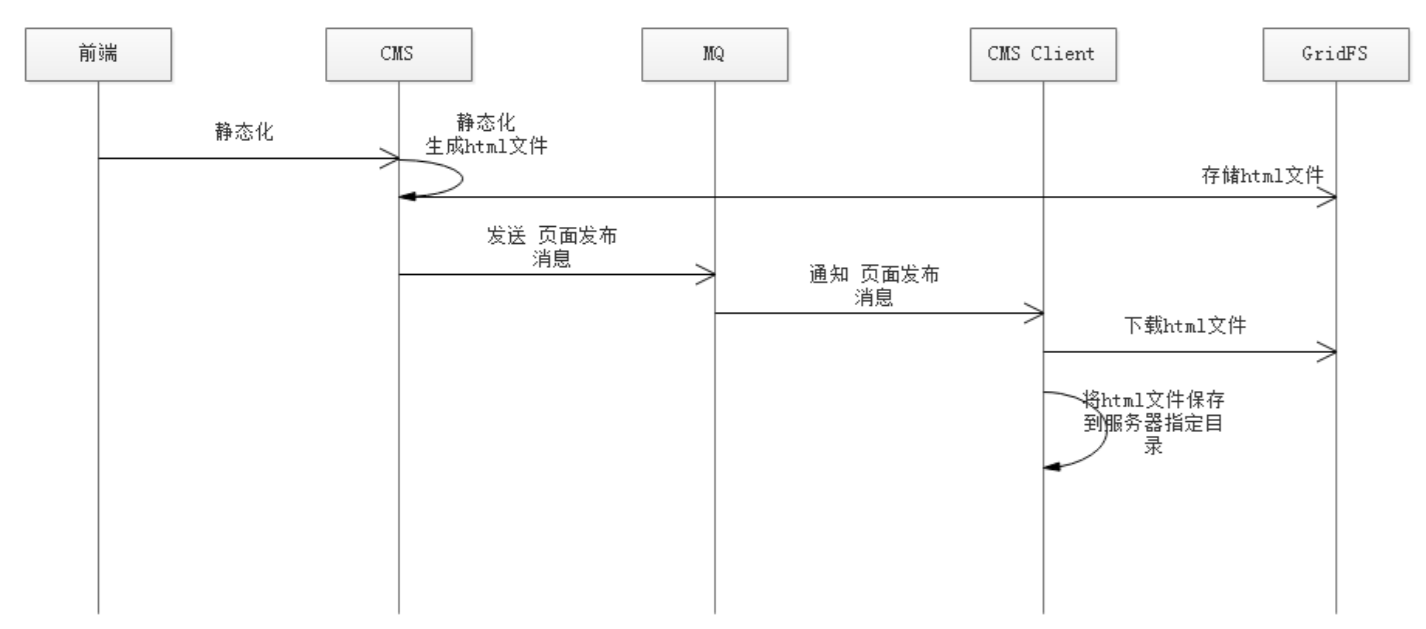

页面发布流程图如下:
1、前端请求cms执行页面发布。
2、cms执行静态化程序生成html文件。
3、cms将html文件存储到GridFS中。
4、cms向MQ发送页面发布消息
5、MQ将页面发布消息通知给Cms Client
6、Cms Client从GridFS中下载html文件
7、Cms Client将html保存到所在服务器指定目录
1.2 页面发布消费方
1.2.1需求分析
功能分析:
创建Cms Client工程作为页面发布消费方,将Cms Client部署在多个服务器上,它负责接收到页面发布的消息后从GridFS中下载文件在本地保存。
需求如下:
1、将cms Client部署在服务器,配置队列名称和站点ID。
2、cms Client连接RabbitMQ并监听各自的“页面发布队列”
3、cms Client接收页面发布队列的消息
4、根据消息中的页面id从mongodb数据库下载页面到本地
调用dao查询页面信息,获取到页面的物理路径,调用dao查询站点信息,得到站点的物理路径
页面物理路径=站点物理路径+页面物理路径+页面名称
。
从GridFS查询静态文件内容,将静态文件内容保存到页面物理路径下。
1.2.2 创建Cms Client工程
1、创建maven工程
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>xc-framework-parent</artifactId>
<groupId>com.xuecheng</groupId>
<version>1.0-SNAPSHOT</version>
<relativePath>../xc-framework-parent/pom.xml</relativePath>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>xc-service-manage-cms-client</artifactId>
<dependencies>
<dependency>
<groupId>com.xuecheng</groupId>
<artifactId>xc-framework-model</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-mongodb</artifactId>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-io</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
</dependency>
</dependencies>
</project>
2、配置文件
在resources下配置application.yml和logback-spring.xml。
application.yml
的内容如下:
server:
port: 31000
spring:
application:
name: xc-service-manage-cms-client
data:
mongodb:
uri: mongodb://root:[email protected]:27017
database: xc_cms
rabbitmq:
host: 120.78.134.111
virtualHost: /
xuecheng:
mq:
#cms客户端监控的队列名称(不同的客户端监控的队列不能重复)
queue: queue_cms_postpage_01
routingKey: 5a751fab6abb5044e0d19ea1 #此routingKey为门户站点ID
说明:在配置文件中配置队列的名称,每个 cms client在部署时注意队列名称不要重复
3、启动类
package com.xuecheng.manage_cms_client;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.domain.EntityScan;
import org.springframework.context.annotation.ComponentScan;
@SpringBootApplication
@EntityScan("com.xuecheng.framework.domain.cms")//扫描实体类
@ComponentScan(basePackages={"com.xuecheng.framework"})//扫描common包下的类
@ComponentScan(basePackages={"com.xuecheng.manage_cms_client"})//扫描本项目下的所有类
public class ManageCmsClientApplication {
public static void main(String[] args) {
SpringApplication.run(ManageCmsClientApplication.class,args);
}
}
1.2.3 RabbitmqConfig配置类
该配置类会自动创建队列等
消息队列设置如下:
1、创建“ex_cms_postpage”交换机
2、每个Cms Client创建一个队列与交换机绑定
3、每个Cms Client程序配置队列名称和routingKey,将站点ID作为routingKey。
package com.xuecheng.manage_cms_client.config;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author Administrator
* @version 1.0
**/
@Configuration
public class RabbitmqConfig {
//队列bean的名称
public static final String QUEUE_CMS_POSTPAGE = "queue_cms_postpage";
//交换机的名称
public static final String EX_ROUTING_CMS_POSTPAGE="ex_routing_cms_postpage";
//队列的名称
@Value("${xuecheng.mq.queue}")
public String queue_cms_postpage_name;
//routingKey 即站点Id
@Value("${xuecheng.mq.routingKey}")
public String routingKey;
/**
* 交换机配置使用direct类型
* @return the exchange
*/
@Bean(EX_ROUTING_CMS_POSTPAGE)
public Exchange EXCHANGE_TOPICS_INFORM() {
return ExchangeBuilder.directExchange(EX_ROUTING_CMS_POSTPAGE).durable(true).build();
}
//声明队列
@Bean(QUEUE_CMS_POSTPAGE)
public Queue QUEUE_CMS_POSTPAGE() {
Queue queue = new Queue(queue_cms_postpage_name);
return queue;
}
/**
* 绑定队列到交换机
*
* @param queue the queue
* @param exchange the exchange
* @return the binding
*/
@Bean
public Binding BINDING_QUEUE_INFORM_SMS(@Qualifier(QUEUE_CMS_POSTPAGE) Queue queue, @Qualifier(EX_ROUTING_CMS_POSTPAGE) Exchange exchange) {
return BindingBuilder.bind(queue).to(exchange).with(routingKey).noargs();
}
}
1.2.4 定义消息格式
消息内容采用json格式存储数据,如下:
页面id:发布页面的id
{
"pageId":""
}
1.2.5 PageDao
1、使用CmsPageRepository 查询页面信息
public interface CmsPageRepository extends MongoRepository<CmsPage,String> {
}
2、使用CmsSiteRepository查询站点信息,主要获取站点物理路径
public interface CmsSiteRepository extends MongoRepository<CmsSite,String> {
}
1.2.6 PageService
在Service中定义保存页面静态文件到服务器物理路径方法:
package com.xuecheng.manage_cms_client.service;
import com.mongodb.client.gridfs.GridFSBucket;
import com.mongodb.client.gridfs.GridFSDownloadStream;
import com.mongodb.client.gridfs.model.GridFSFile;
import com.xuecheng.framework.domain.cms.CmsPage;
import com.xuecheng.framework.domain.cms.CmsSite;
import com.xuecheng.manage_cms_client.dao.CmsPageRepository;
import com.xuecheng.manage_cms_client.dao.CmsSiteRepository;
import org.apache.commons.io.IOUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.mongodb.core.query.Criteria;
import org.springframework.data.mongodb.core.query.Query;
import org.springframework.data.mongodb.gridfs.GridFsResource;
import org.springframework.data.mongodb.gridfs.GridFsTemplate;
import org.springframework.stereotype.Service;
import java.io.*;
import java.util.Optional;
/**
* @author Administrator
* @version 1.0
**/
@Service
public class PageService {
private static final Logger LOGGER = LoggerFactory.getLogger(PageService.class);
@Autowired
GridFsTemplate gridFsTemplate;
@Autowired
GridFSBucket gridFSBucket;
@Autowired
CmsPageRepository cmsPageRepository;
@Autowired
CmsSiteRepository cmsSiteRepository;
//保存html页面到服务器物理路径
public void savePageToServerPath(String pageId){
//根据pageId查询cmsPage
CmsPage cmsPage = this.findCmsPageById(pageId);
//得到html的文件id,从cmsPage中获取htmlFileId内容
String htmlFileId = cmsPage.getHtmlFileId();
//从gridFS中查询html文件
InputStream inputStream = this.getFileById(htmlFileId);
if(inputStream == null){
LOGGER.error("getFileById InputStream is null ,htmlFileId:{}",htmlFileId);
return ;
}
//得到站点id
String siteId = cmsPage.getSiteId();
//得到站点的信息
CmsSite cmsSite = this.findCmsSiteById(siteId);
//得到站点的物理路径
String sitePhysicalPath = cmsSite.getSitePhysicalPath();
//得到页面的物理路径
String pagePath = sitePhysicalPath + cmsPage.getPagePhysicalPath() + cmsPage.getPageName();
//将html文件保存到服务器物理路径上
FileOutputStream fileOutputStream = null;
try {
fileOutputStream = new FileOutputStream(new File(pagePath));
IOUtils.copy(inputStream,fileOutputStream);
} catch (Exception e) {
e.printStackTrace();
}finally {
try {
inputStream.close();
} catch (IOException e) {
e.printStackTrace();
}
try {
fileOutputStream.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
//根据文件id从GridFS中查询文件内容
public InputStream getFileById(String fileId){
//文件对象
GridFSFile gridFSFile = gridFsTemplate.findOne(Query.query(Criteria.where("_id").is(fileId)));
//打开下载流
GridFSDownloadStream gridFSDownloadStream = gridFSBucket.openDownloadStream(gridFSFile.getObjectId());
//定义GridFsResource
GridFsResource gridFsResource = new GridFsResource(gridFSFile,gridFSDownloadStream);
try {
return gridFsResource.getInputStream();
} catch (IOException e) {
e.printStackTrace();
}
return null;
}
//根据页面id查询页面信息
public CmsPage findCmsPageById(String pageId){
Optional<CmsPage> optional = cmsPageRepository.findById(pageId);
if(optional.isPresent()){
return optional.get();
}
return null;
}
//根据站点id查询站点信息
public CmsSite findCmsSiteById(String siteId){
Optional<CmsSite> optional = cmsSiteRepository.findById(siteId);
if(optional.isPresent()){
return optional.get();
}
return null;
}
}
1.2.6 ConsumerPostPage
在cms client工程的mq包下创建ConsumerPostPage类,ConsumerPostPage作为发布页面的消费客户端,监听页面发布队列的消息,收到消息后从mongodb下载文件,保存在本地。
package com.xuecheng.manage_cms_client.mq;
import com.alibaba.fastjson.JSON;
import com.xuecheng.framework.domain.cms.CmsPage;
import com.xuecheng.manage_cms_client.service.PageService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import java.util.Map;
/**
* 监听MQ,接收页面发布消息
* @author Administrator
* @version 1.0
**/
@Component
public class ConsumerPostPage {
private static final Logger LOGGER = LoggerFactory.getLogger(ConsumerPostPage.class);
@Autowired
PageService pageService;
@RabbitListener(queues = {"${xuecheng.mq.queue}"})
public void postPage(String msg){
//解析消息
Map map = JSON.parseObject(msg, Map.class);
//得到消息中的页面id
String pageId = (String) map.get("pageId");
//校验页面是否合法
CmsPage cmsPage = pageService.findCmsPageById(pageId);
if(cmsPage == null){
LOGGER.error("receive postpage msg,cmsPage is null,pageId:{}",pageId);
return ;
}
//调用service方法将页面从GridFs中下载到服务器
pageService.savePageToServerPath(pageId);
}
}
1.3 页面发布生产方
1.3.1 需求分析
管理员通过 cms系统发布“页面发布”的消费,cms系统作为页面发布的生产方。
需求如下:
1、管理员进入管理界面点击“页面发布”,前端请求cms页面发布接口。
2、cms页面发布接口执行页面静态化,并将静态化页面存储至GridFS中。
3、静态化成功后,向消息队列发送页面发布的消息。
1) 获取页面的信息及页面所属站点ID。
2) 设置消息内容为页面ID。(采用json格式,方便日后扩展)
3) 发送消息给ex_cms_postpage交换机,并将站点ID作为routingKey。
1.3.2 RabbitMQ配置
1、配置Rabbitmq的连接参数
在application.yml
添加如下配置:
spring:
rabbitmq:
host: 120.78.134.111
virtualHost: /
2、在pom.xml添加依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
3、RabbitMQConfig配置
由于cms作为页面发布方要面对很多不同站点的服务器,面对很多页面发布队列,所以这里不再配置队列,只需要配置交换机即可。
在cms工程只配置交换机名称即可。
package com.xuecheng.manage_cms.config;
import org.springframework.amqp.core.Exchange;
import org.springframework.amqp.core.ExchangeBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author Administrator
* @version 1.0
**/
@Configuration
public class RabbitmqConfig {
//交换机的名称
public static final String EX_ROUTING_CMS_POSTPAGE="ex_routing_cms_postpage";
/**
* 交换机配置使用direct类型
* @return the exchange
*/
@Bean(EX_ROUTING_CMS_POSTPAGE)
public Exchange EXCHANGE_TOPICS_INFORM() {
return ExchangeBuilder.directExchange(EX_ROUTING_CMS_POSTPAGE).durable(true).build();
}
}
1.3.3 Api接口
在api工程定义页面发布接口:
//页面发布
@ApiOperation("页面发布")
public ResponseResult post(String pageId);
1.3.4 PageService
在PageService中定义页面发布方法,代码如下:
//页面发布
public ResponseResult post(String pageId){
//执行页面静态化
String pageHtml = this.getPageHtml(pageId);
//将页面静态化文件存储到GridFs中
CmsPage cmsPage = saveHtml(pageId, pageHtml);
//向MQ发消息
sendPostPage(pageId);
return new ResponseResult(CommonCode.SUCCESS);
}
//向mq 发送消息
private void sendPostPage(String pageId){
//得到页面信息
CmsPage cmsPage = this.getById(pageId);
if(cmsPage == null){
ExceptionCast.cast(CommonCode.INVALID_PARAM);
}
//创建消息对象
Map<String,String> msg = new HashMap<>();
msg.put("pageId",pageId);
//转成json串
String jsonString = JSON.toJSONString(msg);
//发送给mq
//站点id
String siteId = cmsPage.getSiteId();
rabbitTemplate.convertAndSend(RabbitmqConfig.EX_ROUTING_CMS_POSTPAGE,siteId,jsonString);
}
//保存html到GridFS
private CmsPage saveHtml(String pageId,String htmlContent){
//先得到页面信息
CmsPage cmsPage = this.getById(pageId);
if(cmsPage == null){
ExceptionCast.cast(CommonCode.INVALID_PARAM);
}
ObjectId objectId = null;
try {
//将htmlContent内容转成输入流
InputStream inputStream = IOUtils.toInputStream(htmlContent, "utf-8");
//将html文件内容保存到GridFS
objectId = gridFsTemplate.store(inputStream, cmsPage.getPageName());
} catch (IOException e) {
e.printStackTrace();
}
//将html文件id更新到cmsPage中
cmsPage.setHtmlFileId(objectId.toHexString());
cmsPageRepository.save(cmsPage);
return cmsPage;
}
1.3.5 CmsPageController
编写Controller实现api接口,接收页面请求,调用service执行页面发布
@Override
@PostMapping("/postPage/{pageId}")
public ResponseResult post(@PathVariable("pageId") String pageId) {
return pageService.post(pageId);
}
1.4 页面发布前端
用户操作流程:
1、用户进入cms页面列表。
2、点击“发布”请求服务端接口,发布页面。
3、提示“发布成功”,或发布失败。
1.4.1 API方法
在 cms前端添加 api方法。
/*发布页面*/
export const page_postPage= id => {
return http.requestPost(apiUrl+'/cms/page/postPage/'+id)
}
1.4.2 页面
修改page_list.vue,添加发布按钮
<el‐table‐column label="发布" width="80">
<template slot‐scope="scope">
<el‐button
size="small" type="primary" plain @click="postPage(scope.row.pageId)">发布
</el‐button>
</template>
</el‐table‐column>
添加页面发布事件:
postPage (id) {
this.$confirm('确认发布该页面吗?', '提示', {
}).then(() => {
cmsApi.page_postPage(id).then((res) => {
if(res.success){
console.log('发布页面id='+id);
this.$message.success('发布成功,请稍后查看结果');
}else{
this.$message.error('发布失败');
}
});
}).catch(() => {
});
},
1.5 测试
这里测试轮播图页面修改、发布的流程:
1、修改轮播图页面模板或修改轮播图地址
注意:先修改页面原型,页面原型调试正常后再修改页面模板。
2、执行页面预览
3、执行页面发布,查看页面是否写到网站目录
4、刷新门户首页并观察轮播图是否变化。
1.6 思考
1、如果发布到服务器的页面内容不正确怎么办?
2、一个页面需要发布很多服务器,点击“发布”后如何知道详细的发布结果?
3、一个页面发布到多个服务器,其中有一个服务器发布失败时怎么办?
