组合模式
将对象组合成树形结构以表示“部分——整体”的层次结构,使得用户对单个对象使用具有一致性。

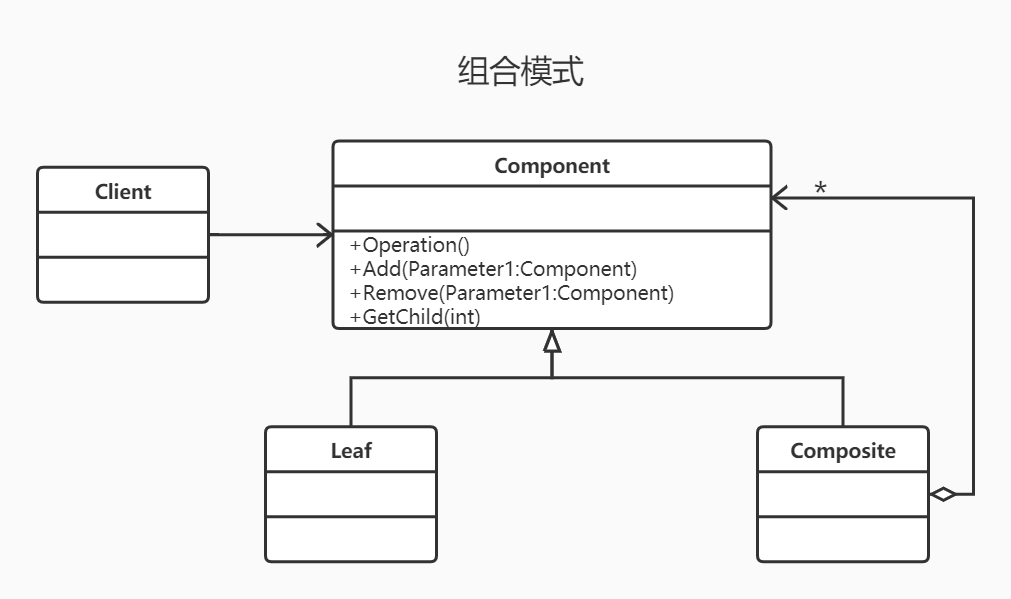

UML补充说明:树枝和叶子实现统一接口,树枝内部组合该接口,树枝内部组合该接口,并且含有内部属性 List,里面放 Component。
优缺点:
优点 | 缺点 |
---|---|
高层模块调用简单。 | 在使用组合模式时,其叶子和树枝的声明都是实现类,而不是接口,违反了依赖倒置原则。 |
节点增加自由 | / |
总结:将相同类型的东西组合在一起形成一种特有的功能。 | |
---|---|
C# 组合模式Demo
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace CompositePattern
{
class Program
{
static void Main(string[] args)
{
Composite root = new Composite() { Name = "root" };
Composite net_tech = new Composite() { Name = "net技术" };
net_tech.Add(new Leaf() { Name = "net新手" });
net_tech.Add(new Leaf() { Name = "C#" });
root.Add(net_tech);
Composite language = new Composite() { Name = "编程语言" };
language.Add(new Leaf() { Name = "Java" });
root.Add(language);
root.Display(1);
}
}
public abstract class Component
{
protected List<Component> children = new List<Component>();
public string Name { get; set; }
public abstract void Add(Component component);
public abstract void Remove(Component component);
public abstract void Display(int depth);
}
public class Leaf : Component
{
public override void Add(Component component)
{
}
public override void Remove(Component component)
{
}
public override void Display(int depth)
{
Console.WriteLine(new string('-', depth) + " " + this.Name);
}
}
public class Composite : Component
{
public override void Add(Component component)
{
this.children.Add(component);
}
public override void Display(int depth)
{
Console.WriteLine(new string('-', depth)+" "+this.Name );
/// 深度遍历
foreach (var item in children)
{
item.Display(depth + 2);
}
}
public override void Remove(Component component)
{
this.children.Remove(component);
}
}
}
测试结果:
Hints:
使用场景:部分、整体场景,如树形菜单,文件、文件夹的管理。
