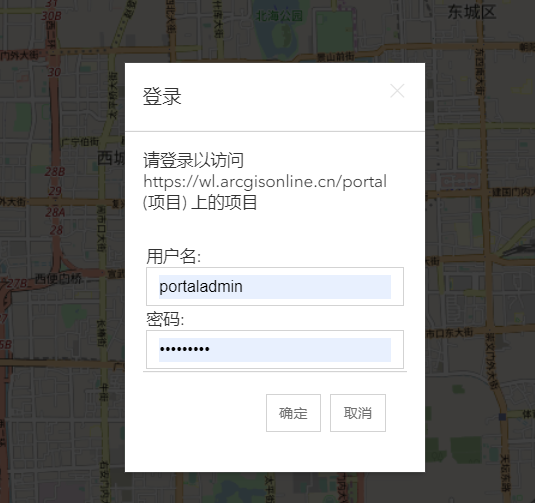

当ArcGIS enterprise中的服务没有设置共享属性或未公开时,前端在访问该服务的时候就会出现输入用户名和密码的弹框,并且每次刷新网页的时候,都需要手动登录一次Portal,但是对于多数用户来说觉着这样很不方便,那如何才能不显示这个登录框呢?下面将介绍另一种方式即通过使用代理的方式来实现。(注:本篇所介绍的方法适用场景是arcgis server和portal进行了联合,server由portal进行托管,server服务的权限、访问是通过portal来进行管理)
ArcGIS API for JavaScript4.x中代理页面配置的说明
https://developers.arcgis.com/javascript/latest/guide/proxies/
ArcGIS API for JavaScript3.x中代理页面配置的说明
https://developers.arcgis.com/javascript/3/jshelp/ags_proxy.html
具体配置过程:
1、在GitHub上下载Esri提供的代理应用资源 ,代理的下载地址及使用见 https://github.com/Esri/resource-proxy/releases
2、针对不同的平台有不同的代理应用分布为IIS、Java(Tomcat )、PHP,大家可以根据自己的环境进行选择。这里我以IIS为例进行代理部署,下载并解压缩.zip文件之本地,直接将DotNet文件夹放到wwwroot目录下。这里我将其文件夹重命名为proxy。

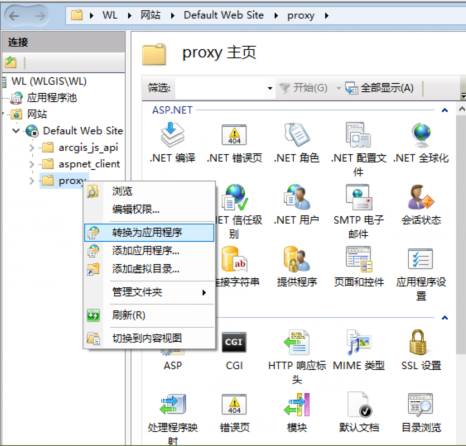

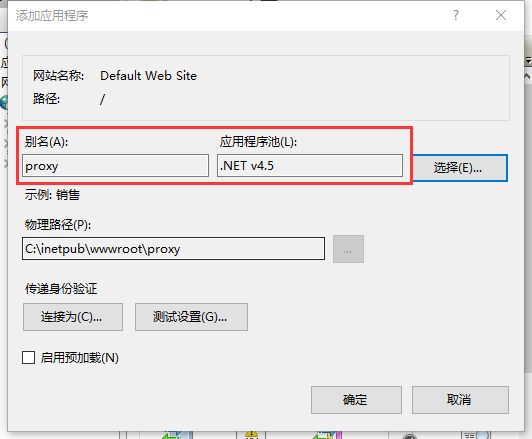

3、右键proxy文件夹,选择“转换为应用程序”,应用程序池至少为4.0,如下图
4、测试代理是否已安装并可用:
http://[yourmachine]/proxy/proxy.ashx?ping
使用以下命令测试代理是否可以在浏览器中直接转发请求:
http://[yourmachine]/proxy/proxy.ashx?http://services.arcgisonline.com/ArcGIS/rest/services/?f=pjson

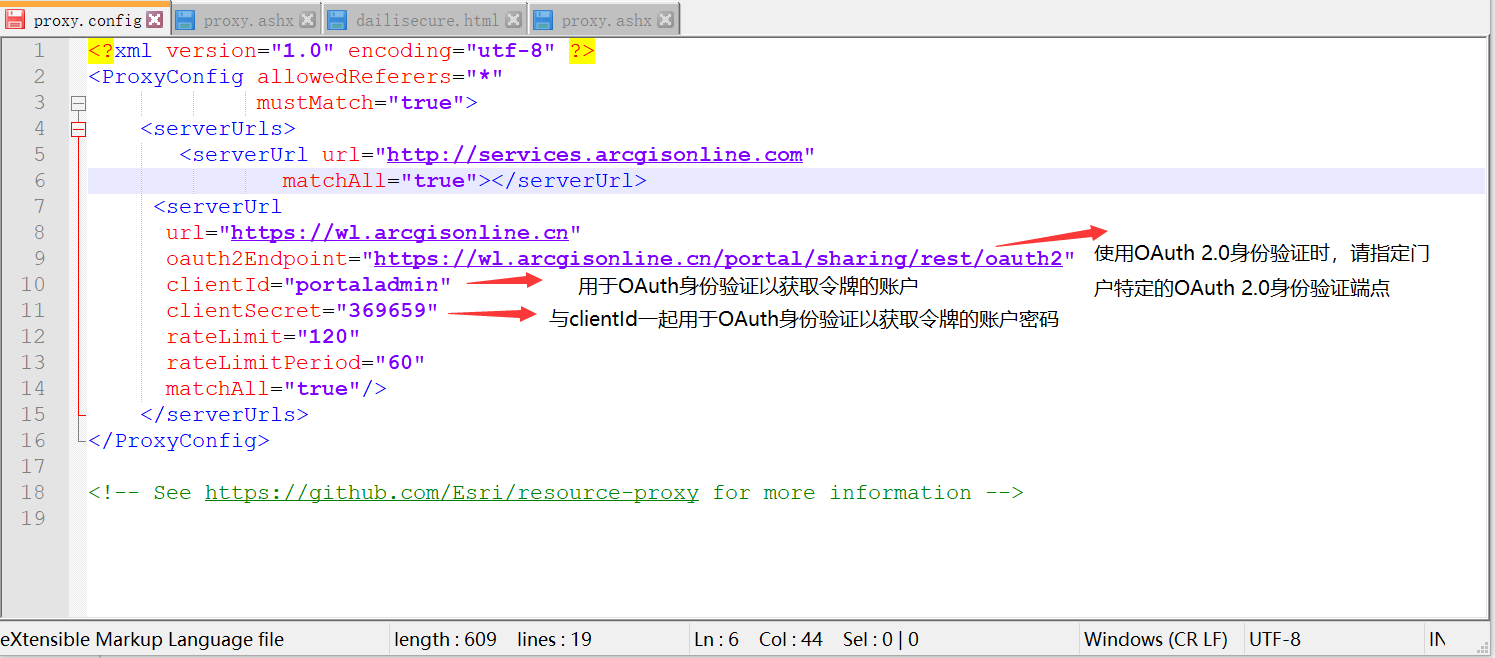

5、配置代理文件,需要编辑下proxy.config文件以设置代理配置,各参数的详细参照:https://github.com/Esri/resource-proxy/blob/master/README.md#proxy-configuration-settings
6、使用代理:
(1) 可以使用特定的代理规则配置您的应用程序。当应用程序尝试通过此URL访问资源时,请求将通过指定的代理发送。该请求的proxyRules属性是一个对象,列出所有这些代理规则。使用urlUtils.addProxyRule()
api 4.x
require(["esri/core/urlUtils"], function(urlUtils) {
urlUtils.addProxyRule({
urlPrefix: "https://wl.arcgisonline.cn",
proxyUrl: "https://wl.arcgisonline.cn/proxy/proxy.ashx"
});
});
api 3.x
require(["esri/urlUtils"], function(urlUtils) {
urlUtils.addProxyRule({
urlPrefix: "https://wl.arcgisonline.cn",
proxyUrl: "https://wl.arcgisonline.cn/proxy/proxy.ashx"
});
});
(2) 如果应用程序中的所有请求都使用相同的代理,也可以使用请求对象的proxyUrl属性指定位置。
api 4.x:
require(["esri/config"], function(esriConfig) {
esriConfig.request.proxyUrl = "https://wl.arcgisonline.cn/proxy/proxy.ashx";
});
api 3.x
require(["esri/config"], function(esriConfig) {
esriConfig.defaults.io.proxyUrl = "https://wl.arcgisonline.cn/proxy/proxy.ashx"
esriConfig.defaults.io.alwaysUseProxy = true;
});
7、完整示例代码
arcgis api for javascript 4.x:
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<meta
name="viewport"
content="initial-scale=1,maximum-scale=1,user-scalable=no"
/>
<title>通过使用代理配置访问portal私有服务</title>
<style>
html,
body,
#viewDiv {
padding: 0;
margin: 0;
height: 100%;
width: 100%;
}
</style>
<link rel="stylesheet" href="https://js.arcgis.com/4.14/esri/css/main.css"/>
<script src="https://js.arcgis.com/4.14/init.js"></script>
<script>
require([
"esri/Map",
"esri/views/MapView",
"esri/layers/FeatureLayer",
"esri/core/urlUtils"
], function(
Map,
MapView,
FeatureLayer,
urlUtils
) {
// Proxy the route requests to avoid prompt for log in
urlUtils.addProxyRule({
urlPrefix: "wl.arcgisonline.cn",
proxyUrl: "https://wl.arcgisonline.cn/proxy/proxy.ashx"
});
var map = new Map({
basemap: "osm"
});
var view = new MapView({
container: "viewDiv",
map: map,
zoom: 13,
center: [116.38, 39.9]
});
var featureLayerUrl =
"https://wl.arcgisonline.cn/server/rest/services//wl/time1/MapServer/0";
featureLayer = new FeatureLayer({
url: featureLayerUrl,
outFields: ["*"],
});
map.add(featureLayer);
});
</script>
</head>
<body>
<div id="viewDiv"></div>
</body>
</html>
arcgis api for javascript 3.x:
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no">
<title>test</title>
<link rel="stylesheet" href="https://js.arcgis.com/3.31/dijit/themes/tundra/tundra.css">
<link rel="stylesheet" href="https://js.arcgis.com/3.31/esri/css/esri.css">
<style>
html, body, #mapDiv {
padding:0;
margin:0;
height:100%;
}
</style>
<script src="https://js.arcgis.com/3.31/"></script>
<script>
require(["esri/config",
"esri/map", "esri/layers/FeatureLayer",
"dojo/domReady!"
], function(esriConfig,
Map, FeatureLayer,
) {
esriConfig.defaults.io.proxyUrl = "https://wl.arcgisonline.cn/proxy/proxy.ashx";
esriConfig.defaults.io.alwaysUseProxy = true;
var map = new Map("mapDiv", {
basemap: "osm",
center: [112, 33.646],
zoom: 8
});
var featurelayer = new FeatureLayer("https://sampleserver1.arcgisonline.com/ArcGIS/rest/services/Demographics/ESRI_Census_USA/MapServer/3", {
mode: FeatureLayer.MODE_SNAPSHOT,
outFields: ["*"]
});
map.addLayer(featurelayer);
});
</script>
</head>
<body class="tundra">
<div id="mapDiv">
</div>
</body>
</html>
此时当我们调用portal中的私有服务时不再弹出登录框。
