使用maven项目,前面有详解如何配置maven
mybatis,主要就是在mvc中的dao层,用于对数据库进行操作,接下来可以分成一条线,相当于工厂模式一样掌握这个mybatis

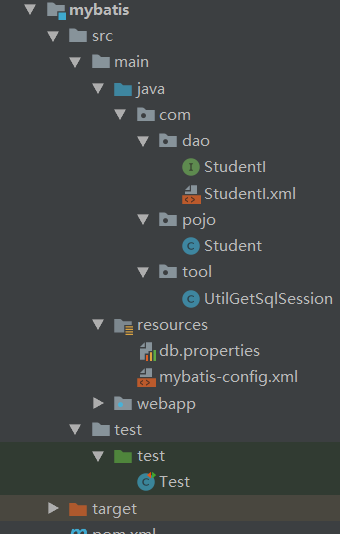

1,目录
2,编写pojo中的实体类
package com.pojo;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Data
//全参构造
@AllArgsConstructor
//无参构造
@NoArgsConstructor
public class Student {
private String name;
private String password;
private Integer age;
private String address;
}

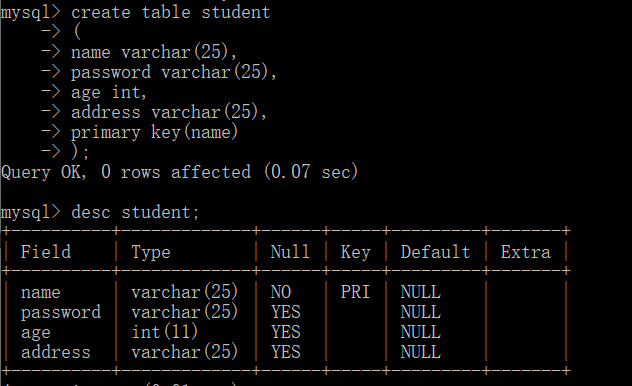

3,编写数据库,根据实体类的参数以及数据类型编写数据库,这边使用外面的图形化界面编写的,使用的是mysql数据库,在哪编写都一样,能连上就行
4,编写操作实体类的接口,即dao中的StudentI类
package com.dao;
import com.pojo.Student;
import java.util.List;
public interface StudentI {
//插入数据
public int insert(Student stu);
//根据名字删除
public int delete(String name);
//根据学生的address更新
public int update(Student student);
//查询所有学生的信息
public List<Student> select();
}
5,编写实现接口的xml文件,即dao中的StudentI.xml文件
注意:一个mapper实现一个接口,即将所有的增删改查全丢在这个配置文件中
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.dao.StudentI">
<insert id="insert" parameterType="Student">
insert into student values (#{name},#{password},#{age},#{address})
</insert>
<delete id="delete">
delete from student where name = #{name}
</delete>
<update id="update" parameterType="Student">
update student name = #{name},password=#{password},age=#{age} where address=#{address}
</update>
<select id="select" resultType="Student">
select * from student
</select>
</mapper>
6,mybatis的可信配置文件,相当于一个工厂,需要将前面的实现接口的xml文件全部装在这个工厂中,并在这个工厂中还需要配置sql连接数据库的参数,以的形式将xml中的文件装载入
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!--日志-->
<settings>
<setting name="logImpl" value="STDOUT_LOGGING"/>
</settings>
<!--别名-->
<typeAliases>
<typeAlias type="com.pojo.Student" alias="Student"></typeAlias>
</typeAliases>
<environments default="development">
<environment id="development">
<transactionManager type="JDBC"/>
<dataSource type="POOLED">
<property name="driver" value="com.mysql.cj.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/ssm?serverTimezone=GMT%2B8"/>
<property name="username" value="root"/>
<property name="password" value="zhs03171812"/>
</dataSource>
</environment>
</environments>
<mappers>
<mapper resource="com/dao/StudentI.xml"/>
</mappers>
</configuration>
7,在将所有的文件装入到工厂中,我们需要去去,相当于spring一样,由容器将bean创建好,有外部调用;这里也是,我们需要将工厂中的sqlSessionFactory工厂中的sqlSession的资源加载出。
因此可以创建一个工具类,将资源sqlsession资源加载出
package com.tool;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;
public class UtilGetSqlSession {
private static SqlSessionFactory sqlsessionFactory;
static {
try{
//获取流的路径
String resources = "mybatis-config.xml";
//通过Resources加载资源,并以流的方式输出
InputStream resourceAsStream = Resources.getResourceAsStream(resources);
sqlsessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
}catch(Exception exeption){
exeption.printStackTrace();
}
}
public static SqlSession getSqlSession(){
//由工厂打开就能得到sqlSession的对象
SqlSession sqlSession = sqlsessionFactory.openSession();
return sqlSession;
}
}
8,在test测试的根目录下创建测试类
对每一个增删改查都进行了测试,使用了多个juint
import com.dao.StudentI;
import com.pojo.Student;
import com.tool.UtilGetSqlSession;
import org.apache.ibatis.session.SqlSession;
import java.util.List;
public class Test {
@org.junit.Test
public void insert(){
SqlSession sqlsession = UtilGetSqlSession.getSqlSession();
StudentI mapper = sqlsession.getMapper(StudentI.class);
mapper.insert(new Student("qwq","123456",20,"广东"));
System.out.println("数据插入成功");
sqlsession.commit();
sqlsession.close();
}
@org.junit.Test
public void delete(){
SqlSession sqlsession = UtilGetSqlSession.getSqlSession();
StudentI mapper = sqlsession.getMapper(StudentI.class);
//根据名字删除信息
mapper.delete("qaq");
System.out.println("数据删除成功");
sqlsession.commit();
sqlsession.close();
}
@org.junit.Test
public void update(){
SqlSession sqlsession = UtilGetSqlSession.getSqlSession();
StudentI mapper = sqlsession.getMapper(StudentI.class);
//根据地质更新数据库
mapper.update(new Student("qqq","123123",21,"江西"));
sqlsession.commit();
sqlsession.close();
}
@org.junit.Test
public void select(){
SqlSession sqlsession = UtilGetSqlSession.getSqlSession();
StudentI mapper = sqlsession.getMapper(StudentI.class);
List<Student> select = mapper.select();
for (Student stu : select) {
System.out.println(stu);
}
sqlsession.commit();
sqlsession.close();
}
}
9,验证
在每一个测试完之后,可以去表中刷新查看
在使用mybatis时,不太推荐使用注解!
